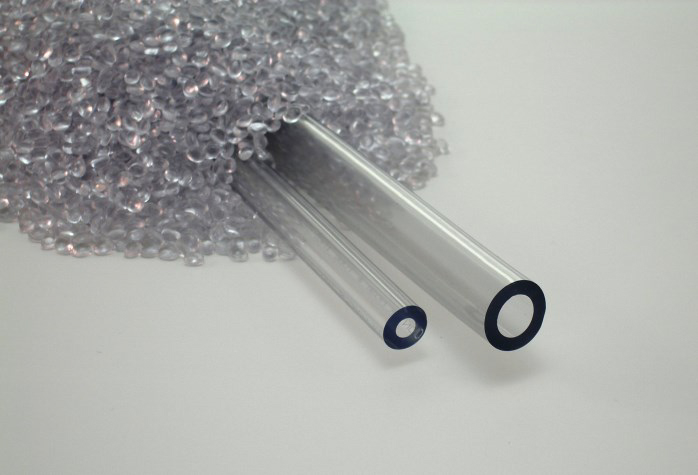

1170 Series NSF®51 Certified Clear PVC Tubing, 70A
Tube
Clear 70A (+/-3) FDA Grade PVC
Reinforcement
No
jacket
None
Temp range
+25 F to +150 F
-5 C to +65 C
Ratings
NSF®51 Certified, USP Class VI Rated Compound, FDA Ingredients, Self Extinguishing
Custom options
| Item Number | ID | OD | Wall | *Max WP | Color | Packaging |
|---|---|---|---|---|---|---|
| 1170.0307.1001 | 3/16 | 7/16 | 0.125 | 55 PSI | Clear | 100 ft Box |
| 1170.0307.5004 | 3/16 | 7/16 | 0.125 | 55 PSI | Clear | 500 ft Reel |
| 1170.0408.1001 | 1/4 | 1/2 | 0.125 | 60 PSI | Clear | 100 ft Box |
| 1170.0408.5004 | 1/4 | 1/2 | 0.125 | 60 PSI | Clear | 500 ft Reel |
| 1170.0610.1001 | 3/8 | 0.625 | 0.125 | 55 PSI | Clear | 100 ft Box |
| 1170.0610.5004 | 3/8 | 0.625 | 0.125 | 55 PSI | Clear | 500 ft Reel |
* Working pressures shown are based at +68 F/+20 C

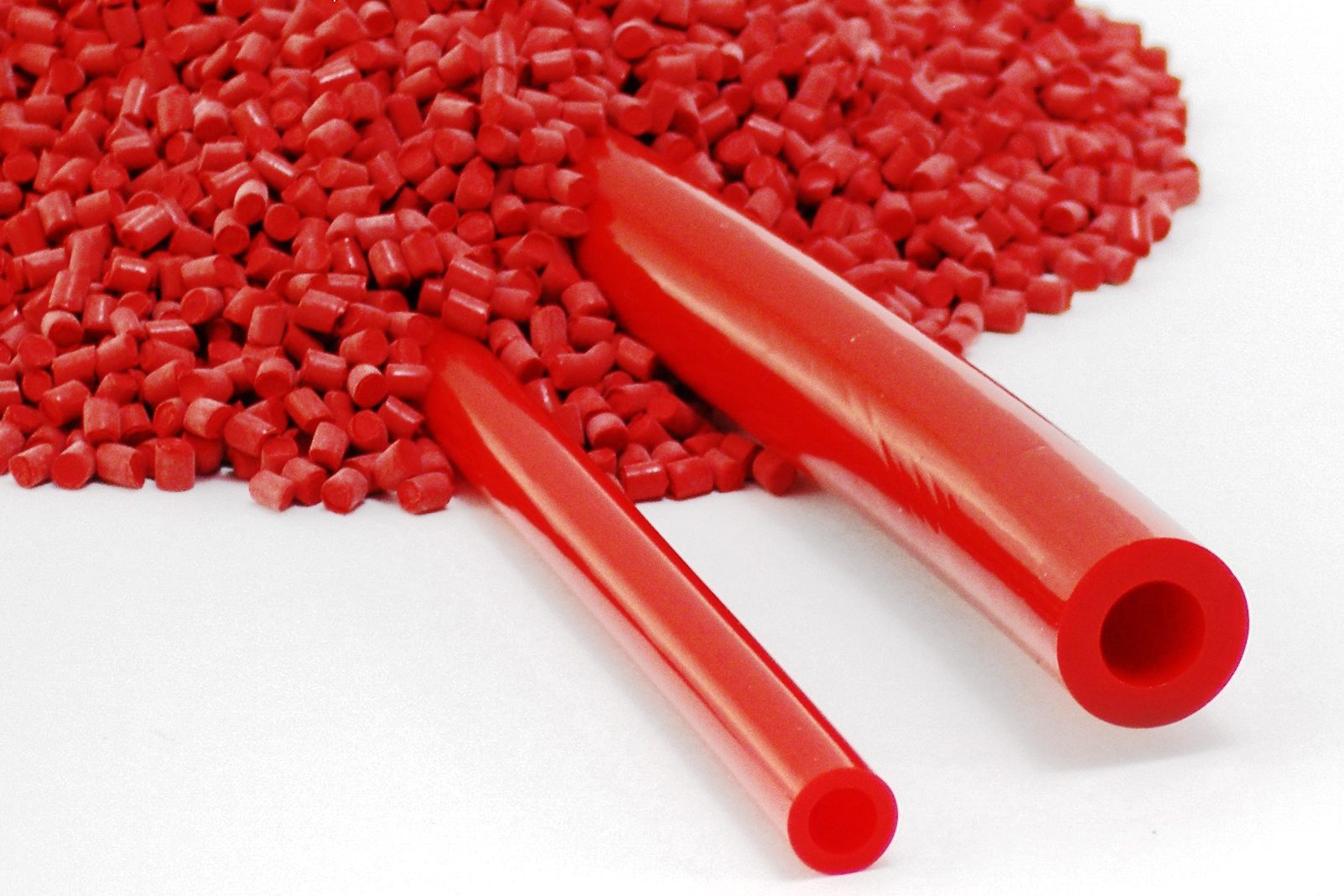

1174 Series NSF®51 Certified Red PVC Tubing, 70A
Tube
Clear 70A (+/-3) FDA Grade PVC
Reinforcement
No
jacket
None
Temp range
+25 F to +150 F
-5 C to +65 C
Ratings
NSF®51 Certified, USP Class VI Rated Compound, FDA Ingredients, Self Extinguishing
Custom options
| Item Number | ID | OD | Wall | *Max WP | Color | Packaging |
|---|---|---|---|---|---|---|
| 1174.0509.1001 | 5/16 | 9/16 | 0.125 | 60 PSI | Red | 100 ft Box |
| 1174.0509.5004 | 5/16 | 9/16 | 0.125 | 60 PSI | Red | 500 ft Reel |
* Working pressures shown are based at +68 F/+20 C
