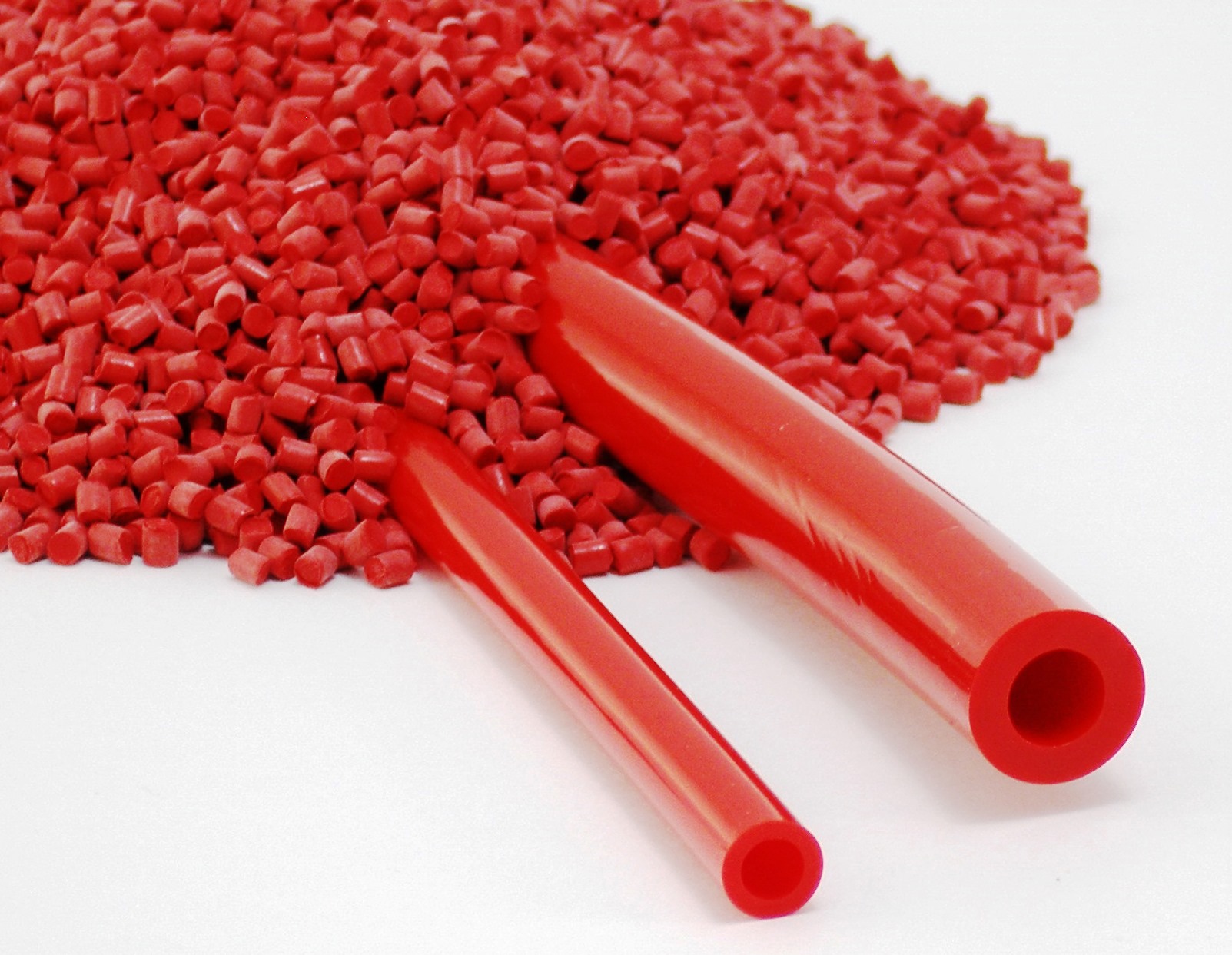

1174 Series NSF-51 Certified Red PVC Tubing, 70A
Tube
Red 70A (+/-3) FDA Grade PVC
Reinforcement
No
jacket
None
Temp range
+25 F to +150 F
-5 C to +65 C
Ratings
NSF-51 Certified, USP Class VI Rated Compound, FDA Ingredients, Self Extinguishing
Custom options
| Item Number | ID | OD | Wall | *Max WP | Color | Packaging |
|---|---|---|---|---|---|---|
| 1174.0509.1001 | 5/16 | 9/16 | 0.125 | 60 PSI | Red | 100 ft Box |
| 1174.0509.5004 | 5/16 | 9/16 | 0.125 | 60 PSI | Red | 500 ft Reel |
* Working pressures shown are based at +68 F/+20 C
