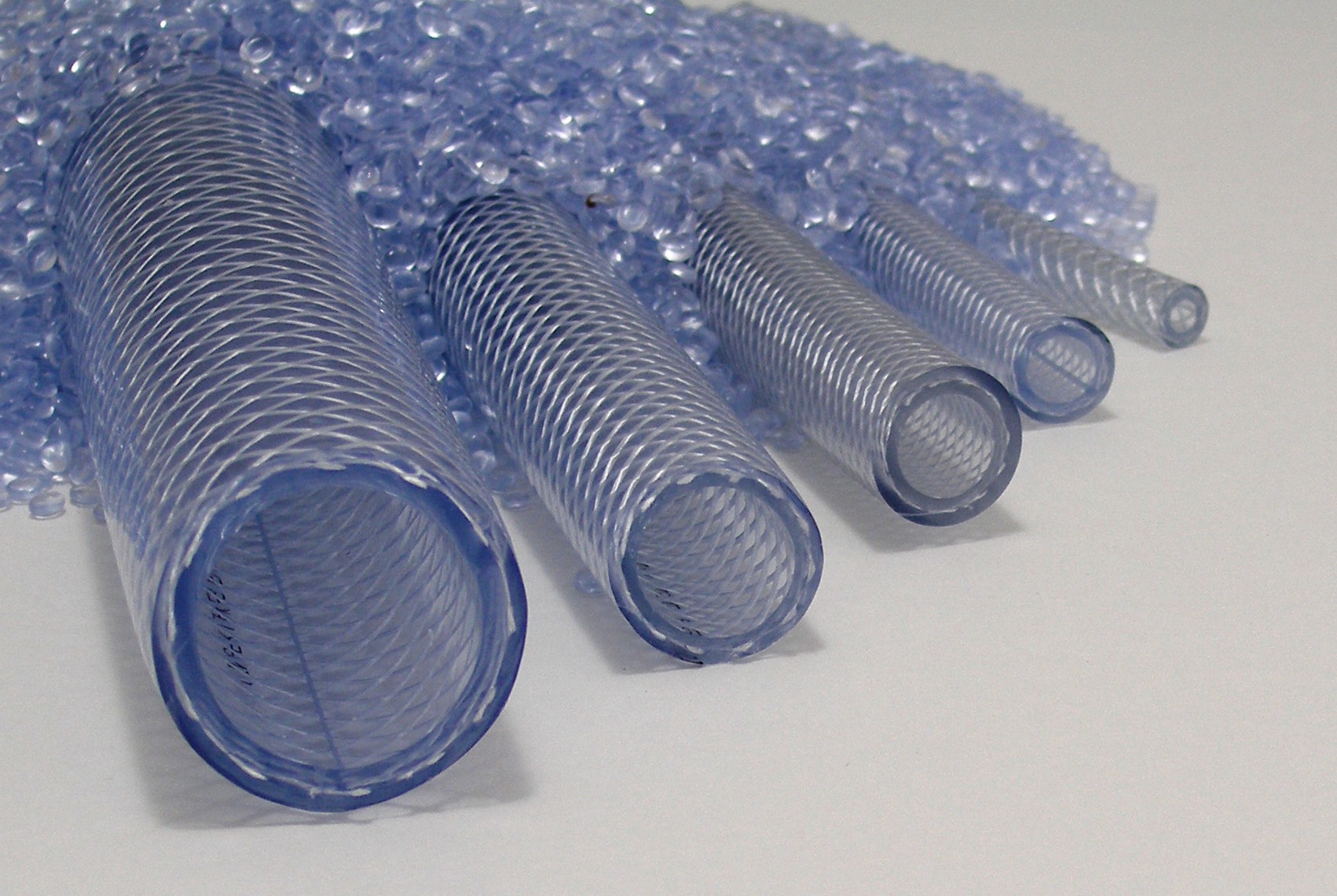

1660 Series NSF®51 & NFS®61 Certified Clear PVC Hose, 75A
Tube
Clear 75A (+/-3) NSF®51 & NSF®61 Certified PVC
Reinforcement
Yes, 2 Spiral
jacket
75A (+/-3) NSF®51 & NSF®61 Certified PVC
Temp range
+25 F to +150 F
-5 C to +65 C
Ratings
NSF®51 & NSF®61 Certified, FDA Grade, USP Class VI Rated Compound, 3A Compliant, RoHS & REACH Compliant, Self Extinguishing
Custom options
| Item Number | ID | OD | Wall | *Max WP | Color | Packaging |
|---|---|---|---|---|---|---|
| 1660.0200.5000 | 1/8 | 0.315 | 0.095 | 300 PSI | Clear | 500 ft Coil |
| 1660.0300.3000 | 3/16 | 0.375 | 0.094 | 250 PSI | Clear | 300 ft Coil |
| 1660.0400.3000 | 1/4 | 0.438 | 0.094 | 250 PSI | Clear | 300 ft Coil |
| 1660.0400.6004 | 1/4 | 0.438 | 0.094 | 250 PSI | Clear | 600 ft Coil |
| 1660.0500.3000 | 5/16 | 0.525 | 0.106 | 250 PSI | Clear | 300 ft Coil |
| 1660.0500.6004 | 5/16 | 0.525 | 0.106 | 250 PSI | Clear | 600 ft Coil |
| 1660.0600.1001 | 3/8 | 0.594 | 0.110 | 225 PSI | Clear | 100 ft Coil |
| 1660.0600.3000 | 3/8 | 0.594 | 0.110 | 225 PSI | Clear | 300 ft Coil |
| 1660.0600.6004 | 3/8 | 0.594 | 0.110 | 225 PSI | Clear | 600 ft Coil |
| 1660.0800.1001 | 1/2 | 0.750 | 0.125 | 200 PSI | Clear | 100 ft Coil |
| 1660.0800.3000 | 1/2 | 0.750 | 0.125 | 200 PSI | Clear | 300 ft Coil |
| 1660.0800.6004 | 1/2 | 0.750 | 0.125 | 200 PSI | Clear | 600 ft Coil |
| 1660.1000.1000 | 5/8 | 0.875 | 0.125 | 200 PSI | Clear | 100 ft Coil |
| 1660.1000.3000 | 5/8 | 0.875 | 0.125 | 200 PSI | Clear | 300 ft Coil |
| 1660.1000.5004 | 5/8 | 0.875 | 0.125 | 200 PSI | Clear | 500 ft Coil |
| 1660.1200.1000 | 3/4 | 1.030 | 0.140 | 150 PSI | Clear | 100 ft Coil |
| 1660.1200.3000 | 3/4 | 1.030 | 0.140 | 150 PSI | Clear | 300 ft Coil |
| 1660.1200.5004 | 3/4 | 1.030 | 0.140 | 150 PSI | Clear | 500 ft Coil |
| 1660.1600.1000 | 1 | 1.300 | 0.140 | 125 PSI | Clear | 100 ft Coil |
| 1660.1600.2000 | 1 | 1.300 | 0.150 | 125 PSI | Clear | 200 ft Coil |
| 1660.2000.1000 | 1-1/4 | 1.625 | 0.188 | 100 PSI | Clear | 100 ft Coil |
| 1660.2400.1000 | 1-1/2 | 1.937 | 0.219 | 100 PSI | Clear | 100 ft Coil |
| 1660.3200.1000 | 2 | 2.490 | 0.245 | 75 PSI | Clear | 100 ft Coil |
* Working pressures shown are based at +68 F/+20 C ** Weight per packaged length
